Imaris 7.1.0 Release Notes

Welcome to the Imaris 7.1.0 release notes. Version Date: June 14, 2010.
Please have a look to the Overview of Imaris Release notes for information about prior released features and fixed bugs.

[Imaris]
[ImarisTrack]
[FilamentTracer]
[InPress]
[Fixed Bugs]
[Feedback]
[Back to Download Page ]

Imaris

General

Accelerated Save and Load of IMS files with large Surpass Scene

Spots, Surfaces, Cells, and Filaments
Scene data is now written in binary format (loading up to 20 times faster, saving up to 2 times faster)
Imaris 7.1 reads all data from "old" 7.0 files
Imaris 7.0 ignores the scene data from the new files. In order to transfer scene data from 7.1 to 7.0 use "Export Scene" from Imaris' "File" menu.

Read Scene Data from IMOD files (image, points, contours, and surfaces)
Andor iQ image reader (reads all 5D images from iQ image disk, i.e. it can not read images with more dimensions - like "confocality")
Free Rotations (from Image Processing menu)

Allows arbitrary rotation axis / angle
Use Surpass View to setup the rotation angle
(In the 3D alignment example below for illustrating rotational drift correction, the free rotation was used to generate the red image)

Fixed brightnes changes when zooming in and out
Fixed many issues related with multithreading

Brightness changes:

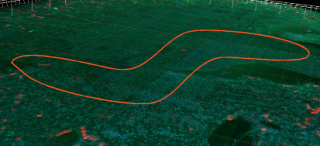

Imaris 7.0 above: Brightness differences of neighbouring images blocks with different resolutions (zoom levels) are clearly visible.

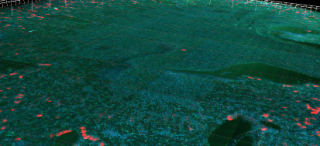

Imaris 7.1 above: Brightness differences are mostly suppressed.

ImarisTrack

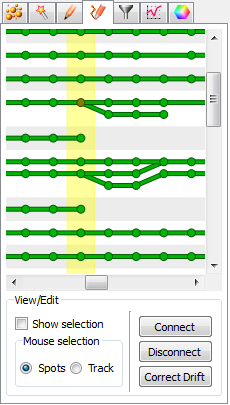

Track Editor

New interactive tool for manual track editing

Available as new tab for Spots, Surfaces, Cells, and Filaments
Interactions:

Mouse wheel zooms the view
Right mouse button pans the view
Left-mouse-click onto a vertex to select it
Left-mouse-click onto the beginning of a line to select entire track
<ctrl> + left-mouse-click to toggle the selection
<shift> + left-mouse-click onto an edge to delete a connection
<shift> + left-mouse-click onto a vertex, and drag to create a connection

Show selection: Option to reduce displayed tracks to a smaller working set
Moved "Mouse Selection" from "Edit" tab to "Track-Edit" tab
Moved "Connect" and "Disconnect" from "Edit" tab to "Track-Edit" tab
Moved "Drift Correction" from "Edit" tab to "Track-Edit" tab

Drift Correction

(Earlier Imaris versions supported only
Translational Drift Correction)

Available for Spots and Surfaces
Select one ore more tracks to correct drift:

0 Tracks selected: Imaris acts as if all tracks were selected
1 Track selected: Imaris does the same as for pure translational drift correction
2 Tracks selected: Imaris compensates rotational and translational drift in 2D images (for 3D images it is recommended to select at least 3 tracksd)
3 Tracks or more selected: Imaris compensates rotational and translational drift in 3D

Result Image:

Crop largest common region: can lead to a really small image (old feature)
New size equal to current size: moderate / predictable image size (new in Imaris 7.1)
Include entire result: can lead to a really huge image (old feature)

Example: 3D image alignment

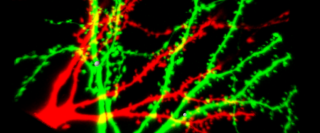

Two unaligned images (unaligned red image was artificially created with Imaris' "Free Rotate")


Key points time 1	Key points time 2

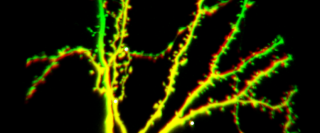

The image above shows the result after rotational drift correction using all the 3 tracks. (The key points were manually set and tracked. For this reason the location of the key points is not perfect, and the result seems not accurate. Nevertheless this perfectly illustrates the behavior of the new feature)

FilamentTracer

Tracking

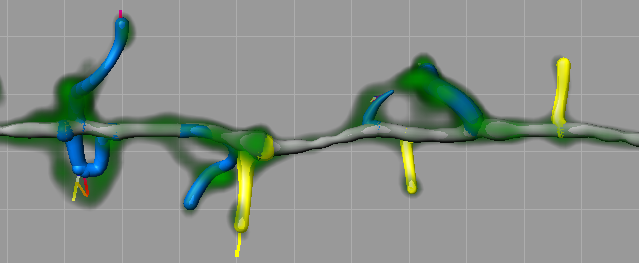

Tracked Spines using Imaris' FilamentTracer: the image above shows the filaments, the trajectories of the Spine heads together with a volume rendering. Image Courtesy of Dr. Anne McKinney, McGill University, Montreal, Canada

Automatic and manual Tracking of Dendrites and Spines
Analyze Spine-Lenght, Spine-Volume, etc. over time
Uses Autoregressive Motion Model for

Dendrite Branch Points
Dendrite Terminal Points
Spine Attachment Points
Spine Branch Points
Spine Terminal Points

Requires a License for FilamentTracer and ImarisTrack

The time plot above is showing the length of the three selected Spines

Close-up view of the shrinking Spine (red line in time plot)

InPress

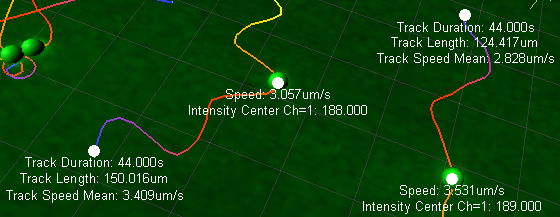

Statistics Annotations	Annotations with Object Statistics Available for Spots, Surfaces, and Cells Requires a License for InPress and MeasurementPro In order to add a Statistics Annotation, switch to statistics tab, select an object and a value, and press the Annotation Icon on the bottom of the dialog. Color, Font, additional Text, or additional Statistics Values can be adjusted using the InPress-Tab

Fixed 63 Bugs (since Imaris 7.0.0)
1045	Free rotation
1881	Compensation for rotation
2074	Textures blocks change brightness
2997	First Snapshot 'Size from image' 100% zoom has wrong scale
3098	Selection of selfpainted spots, selects also first spot
3114	3D drift correction; rotation defined by a 3-point plane
3301	split surfaces on time series crashes (system config dependent)
3343	tracking of 2D time series crashes
3369	Spot generation 3D time series with background subtraction crashes on XP x64, OS X and Vista X64
3413	Generation of 8 million triangles crashes on XP x32
3481	Crash at 77% Calculating surfaces/watersheed/copying
3594	Diameter calc seems to crash imaris "randomly"
3618	Filament "autodepth" drawing does not make connections, if filament contains a spine
3652	Surface calculation with split touching objects and big dataset crashes
3675	Crash during Filament diameter calculation (step 4)
3699	Surface with split touching objects crashes on osx
3733	certain image sizes and/or Resample3D result in Surfaces crash
3786	Surfaces wizard crashes when frequently stepping backward & forward
3815	canceling a Save As operation deletes IMS dataset file
3822	crash during dendrite diameter calculation
3880	Quit greyed out after opening an image
3893	Store number of frames and playback speed with keycrame animation
3909	Snapshot crashes with blend for volume and Shading and Shadow for frame
3923	Spots detection crashes at diameter / Gaussian stage
4012	Exceptions can not be caught on Mac
4018	bypass load dataset dialog
4053	Missing unit in Orthoslicer Slice Position
4126	Export components in binary format
4163	LIF subseries name is not read properly.
4206	switch to Color tab during Cell creation wizard -> crash
4207	Crash when view area smaller than snap shot w/ no off screen rendering
4220	Cells Export for Plotting does not write any file
4221	Enforce one nucleus per cell applied too early
4232	saved ims files in AutoDeblur: crashes Imaris File converter
4233	saved ims file in AutoDeblur cannot be opened in Imaris
4235	Matlab 2009a/b crashes with when changing into folders with .ims or .imx files.
4236	vesicles remain in view when using back button in wizard
4244	Import fails from Volocity 5.3.1 export of ICS/IDS, LIFF, openlabraw
4250	The threshold value in step Threshold of the surface wizard shows the unit
4263	bad performance in the Shadow projection in Imaris 7 compared to Imaris 5.72
4274	Preview line not shown when contour visibility is switched
4281	Crop to fill does not crop
4284	Fit to selection crashes if there is no selection
4286	Filament Additional regions sometimes loses initial region if stepping back in wizard
4288	black blocks in lower resoltion levels
4289	The threshold value in step Threshold of the spots wizard shows the unit
4291	"do you want to save dataset?" "yes" response is ignored
4301	Scholl statistics disappeared
4305	multiple selection of statistics values does not work
4310	Vesicles still visible if user goes from back one step
4311	Cells-LUT/Stats coded coloring is applied differently.
4314	C++ Runtime Error 6034
4322	Matlab command not executed
4323	Correct drift crashes imaris if dataset has less time points than spots
4324	Time calibration not read for Zeiss ZVI files
4328	Last 4 slices of a tiff series with 311 files seem not to be loaded (they are rendered black)
4333	Center function for filament moves the line off center
4338	Coloc crashes when opened with 32 bit float dataset
4345	Resample Open - Resample Time fails
4380	error message appears, when saving a file as "Tiff"
4393	PlayBack State panel missing scroll bar
4403	additional SimplePCI file reader problems CXD file incompatible
4410	Repositioning surfaces scissor during cut crashes Imaris

Feedback
Any feedback on the installation, and the usage of Imaris and its features are welcome. Please send your comments to eusupport@bitplane.com
